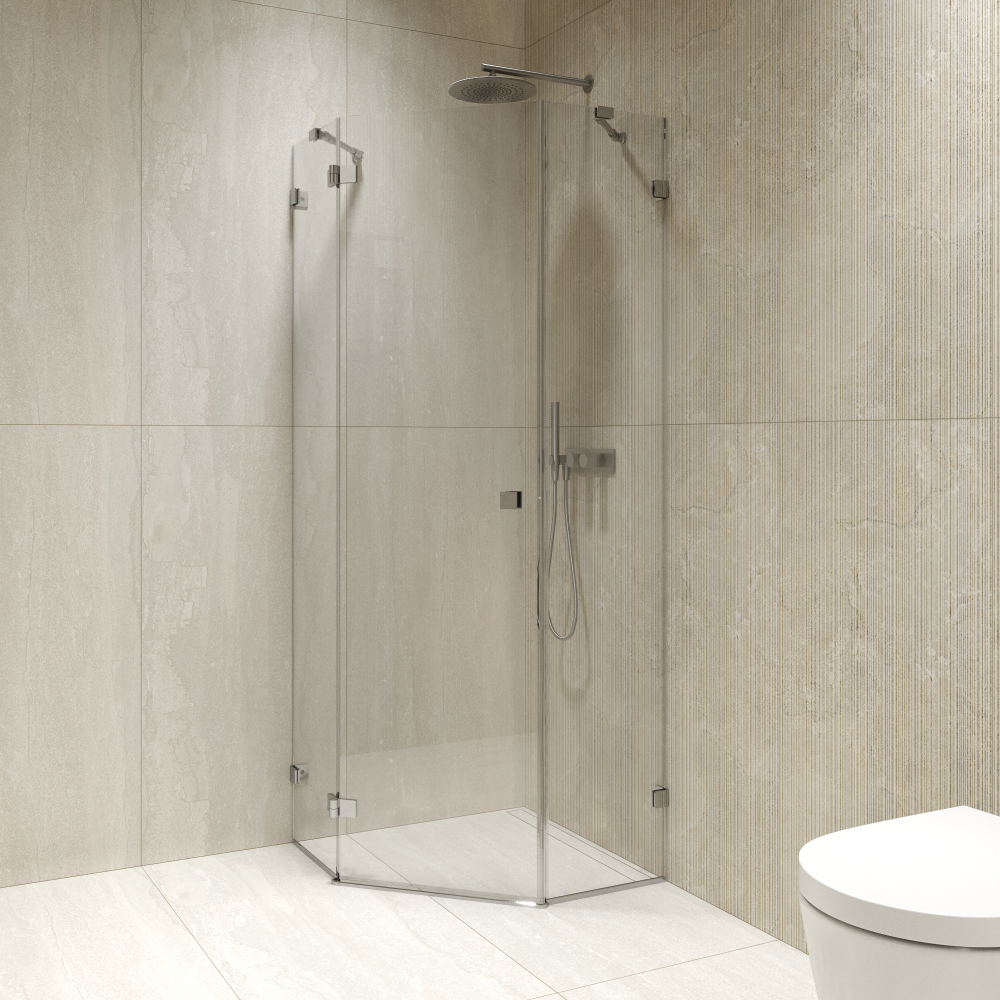

Shower enclosure LUNA
A pentagonal shower enclosure with recessed hinges for small spaces.
Information

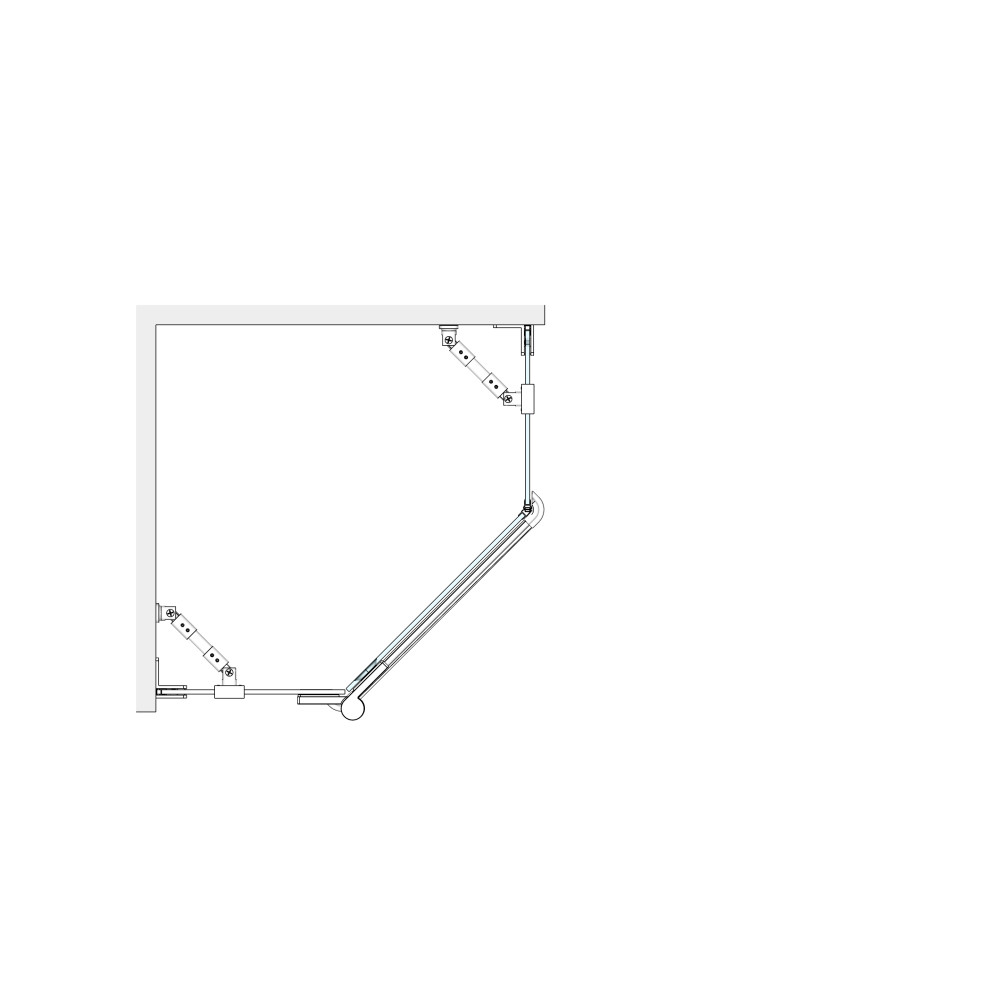

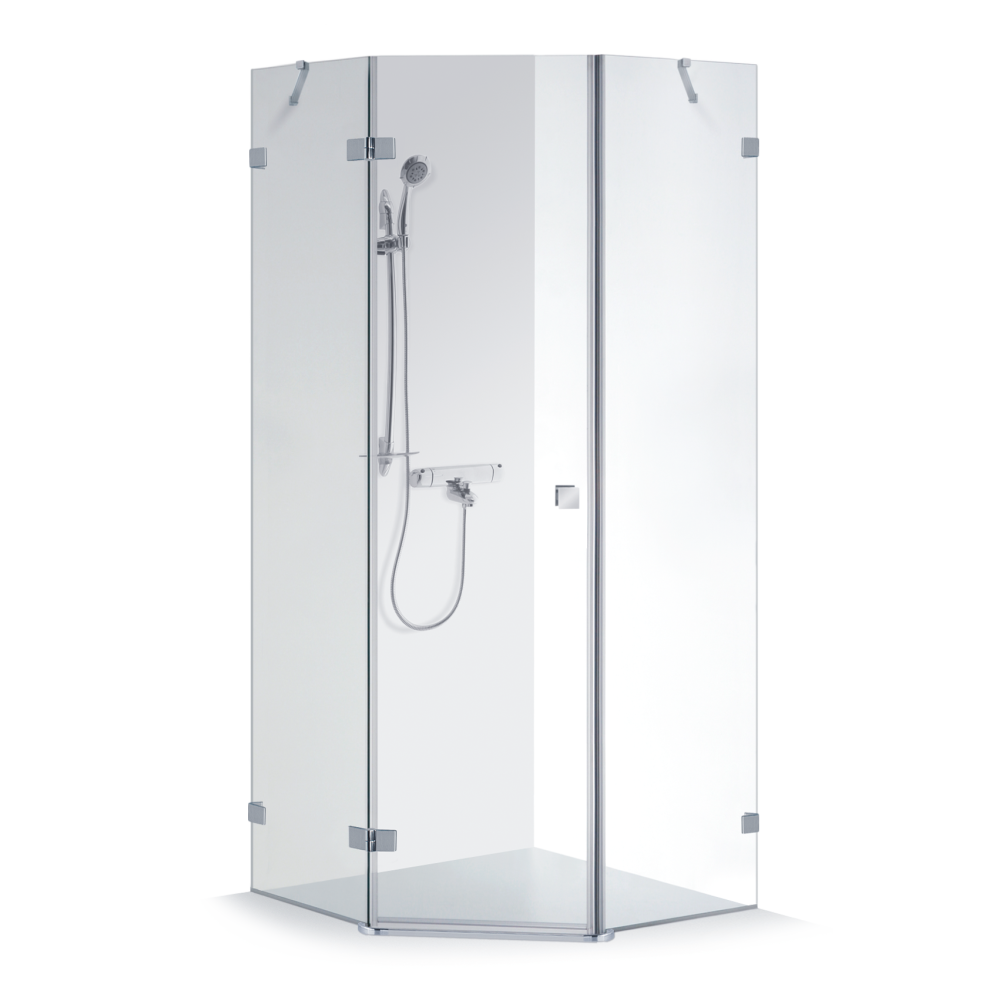

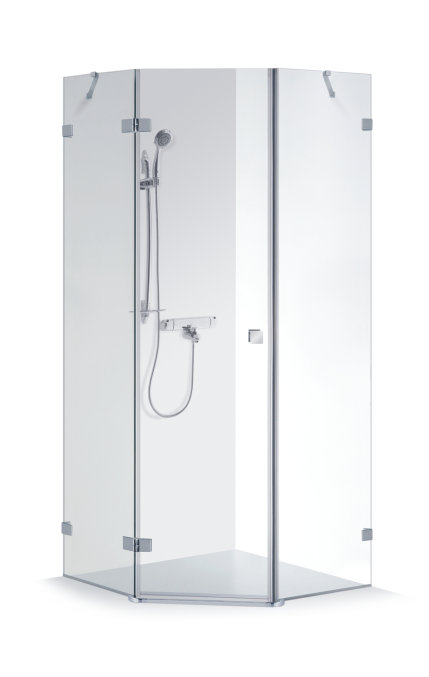

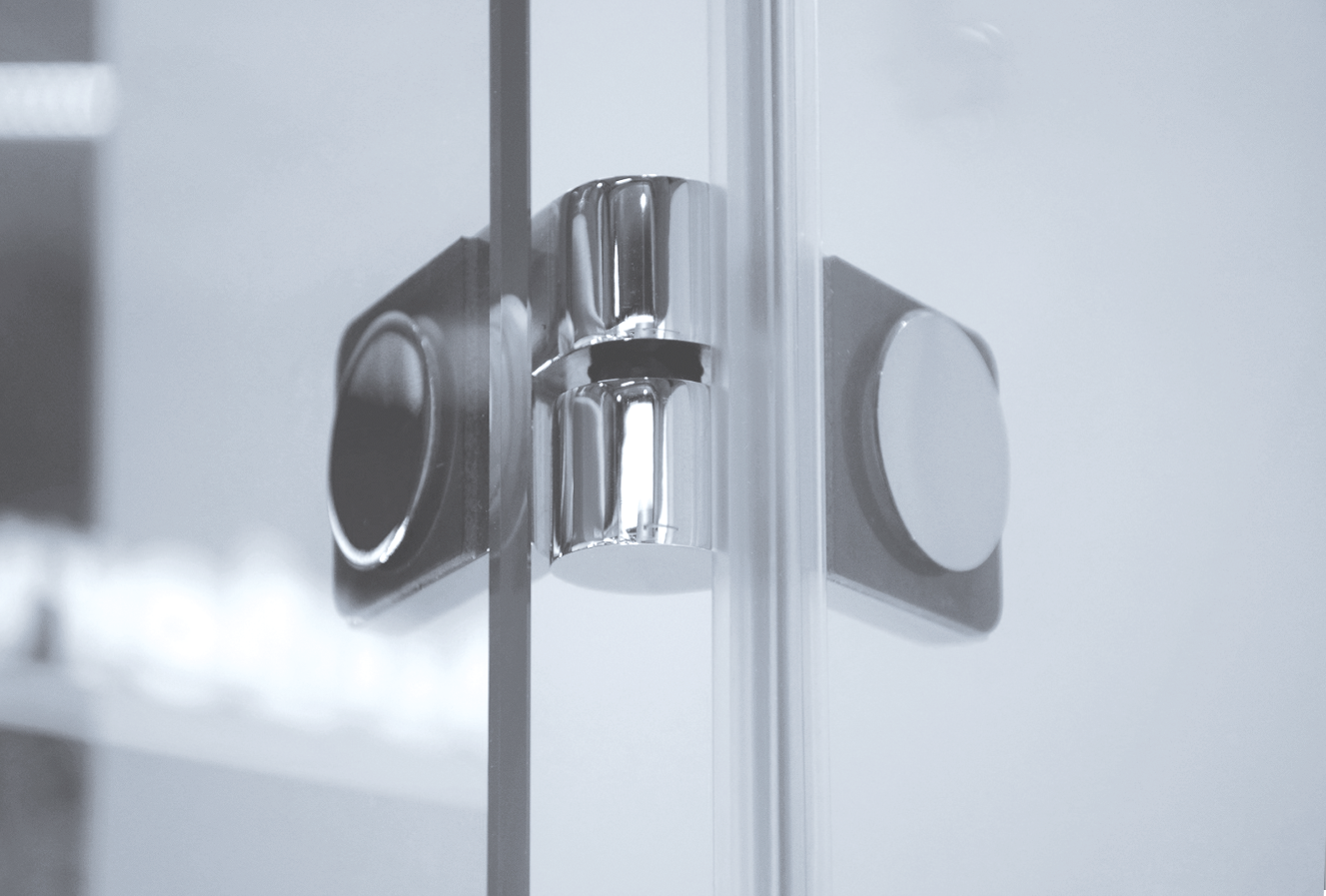

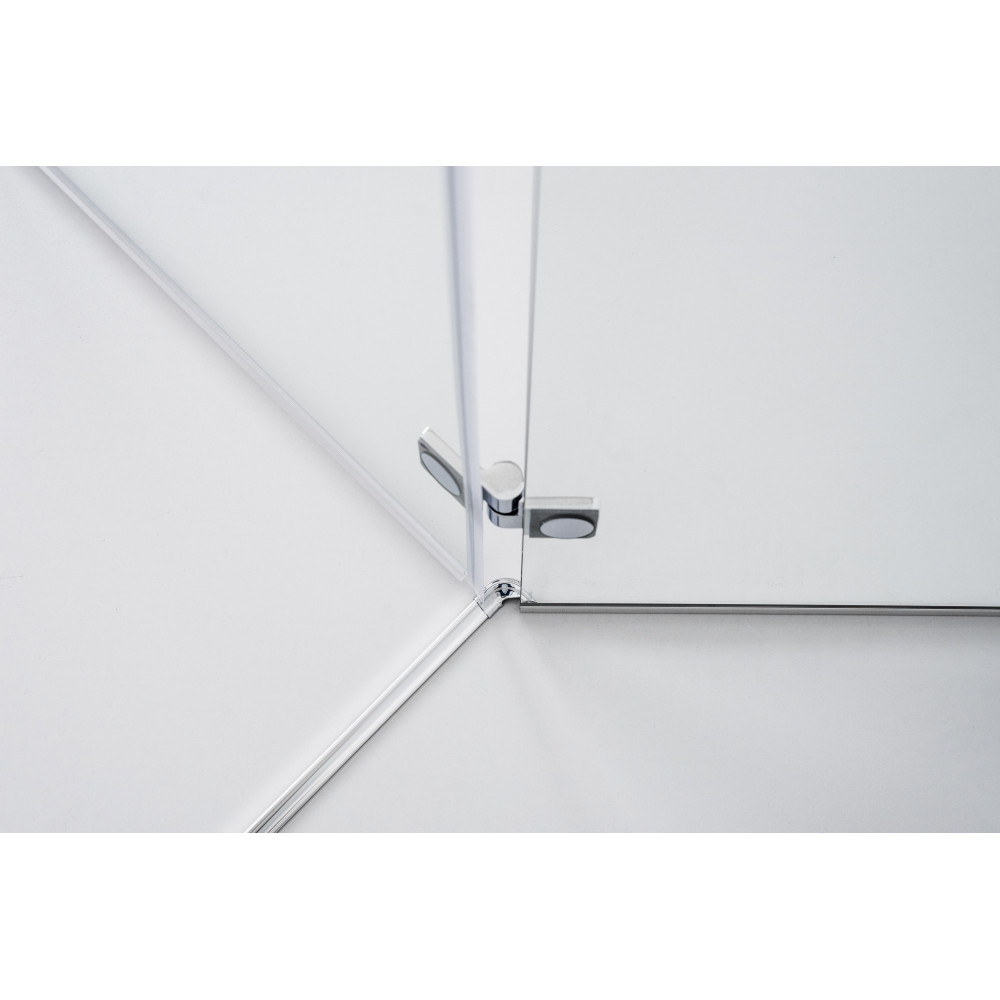

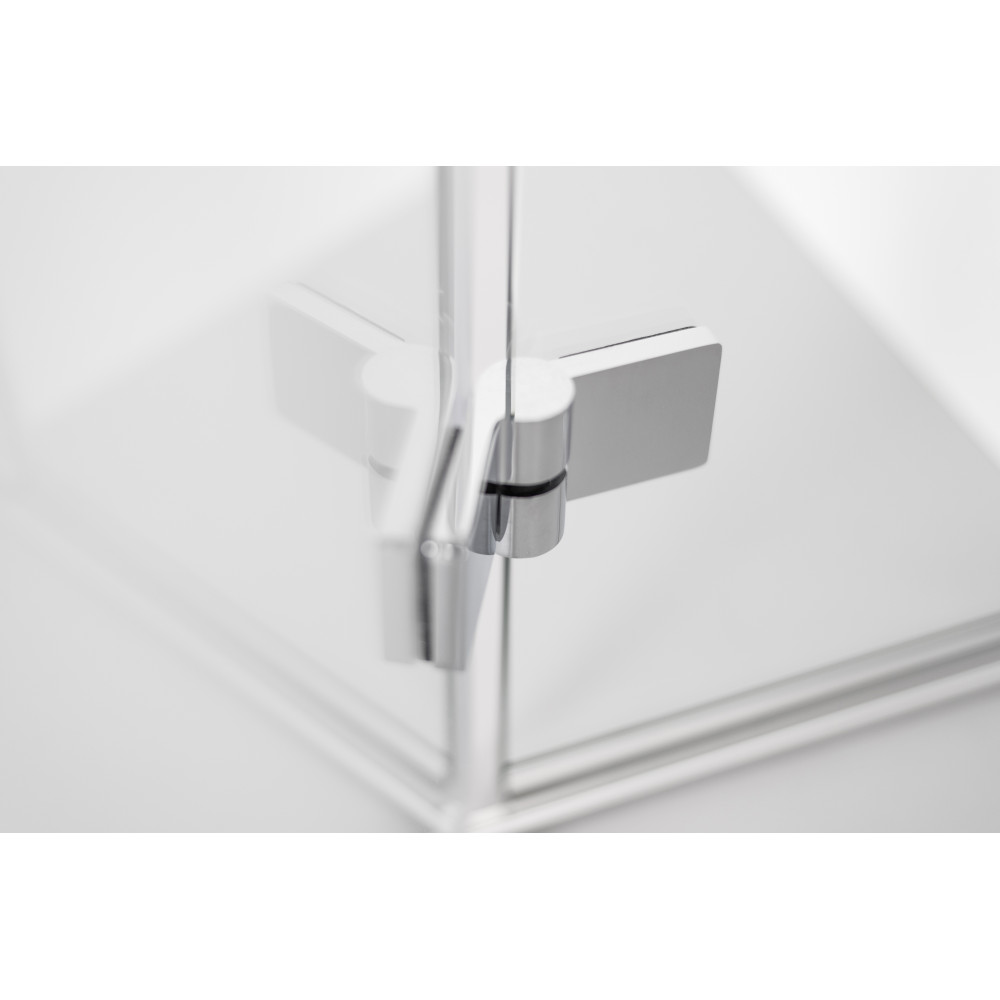

A frameless pentagonal shower enclosure with a front-opening door. Manufactured with hinges inset into the glass to make cleaning very easy. Compact and blends well into any bathroom space. Can be installed beside a toilet or sink.
Shower enclosure |
A(mm) |
B(mm) |
c (mm) |
d (mm) |
e (mm) |
Shower enclosure height (mm) |
80x80 |
783-788 |
783-788 |
450 |
475 |
450 |
2000 |
90x90 |
883-888 |
883-888 |
450 |
615 |
450 |
|
100x100 |
983-988 |
983-988 |
580 |
615 |
550 |
|
Custom dimensions vary in the range of 700... 1000x700... 1000 mm |
- The maximum screen height is 2100 mm.
- When ordering the shower door, be sure to specify on which side it will be installed.
- The LUNA 90x90 shower enclosure can be mounted on the SIMAS tray.
- Upon request, the shower enclosure LUNA suitable for installing on a tray of your choice can be produced. That must be specified when ordering the product.
Choose the model of the enclosure
Measure the dimensions of the needed shower enclosure. Need help? Contact us for a free consultation and measurements.
